In this Threat Analysis report, the Cybereason team investigates a recent IcedID infection that illustrates the tactics, techniques, and procedures (TTPs) used in a recent campaign. IcedID, also known as BokBot, is traditionally known as a banking trojan used to steal financial information from its victims. It has been around since at least 2017 and has been tied to the threat group TA551.
Recently IcedID has been used more as a dropper for other malware families and as a tool for initial access brokers.
Fast Moving: The attacker went from initial infection to lateral movement in less than an hour. The Active Directory domain was compromised in less than 24 hours.
Standardized Attack Flow: Throughout the attack, the attacker followed a routine of recon commands, credential theft, lateral movement by abusing Windows protocols, and executing Cobalt Strike on the newly compromised host. This activity is explained in more detail in the Lateral Movement section below.
Techniques Borrowed From Other Groups: Several of the TTPs we observed have also been found in attacks attributed to Conti, Lockbit, FiveHands, and others. Not only does this show a trend towards attackers sharing ideas across groups, but this also demonstrates how the ability to detect the techniques and tactics of one group can be applied to detecting others.
Change of Initial Infection Vector: In previous campaigns, attackers delivered IcedID through phishing with malicious macros in documents. With the recent changes Microsoft has implemented, attackers are using ISO and LNK files to replace macros. The behavior illustrated in this article confirms that trend.
Quick to Exfiltrate: Exfiltration in the customer environment started two days after initial infection.

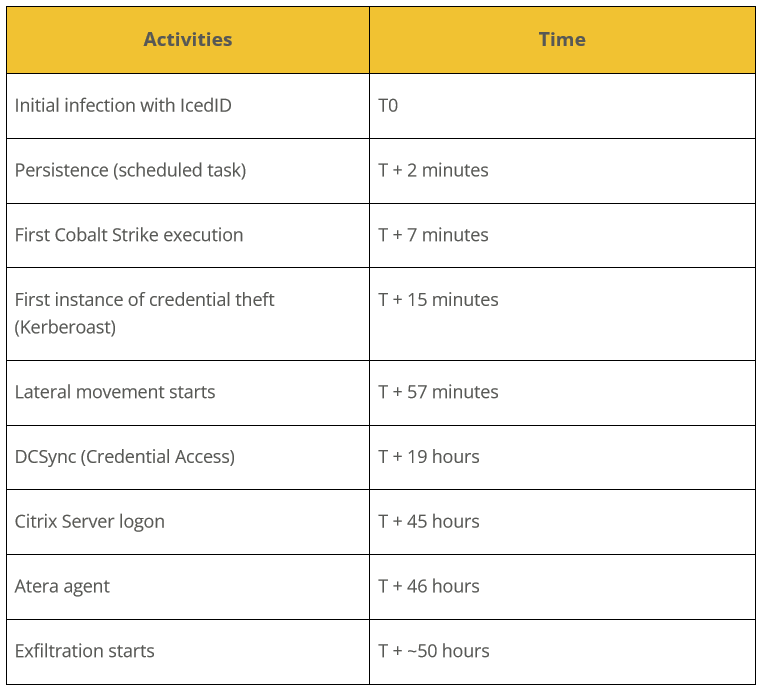

During the case investigated by the Cybereason team, the attacker executed various actions as displayed in this timeline:
In this section, we describe the infection methods employed on the patient-zero machine, which was used as a pivot by the attacker for the rest of the compromise.

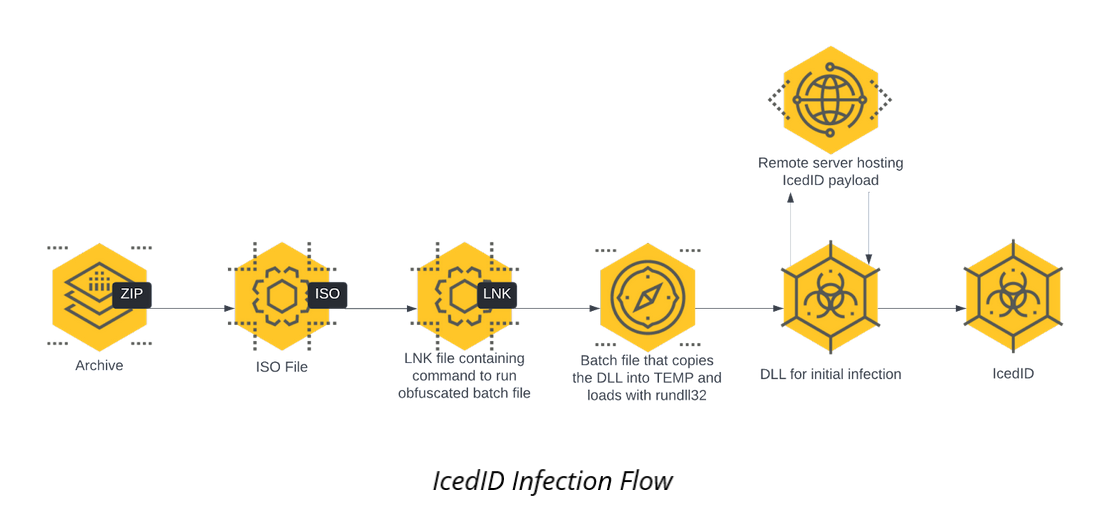

In the following diagram, we describe the deployment mechanisms observed during this case:

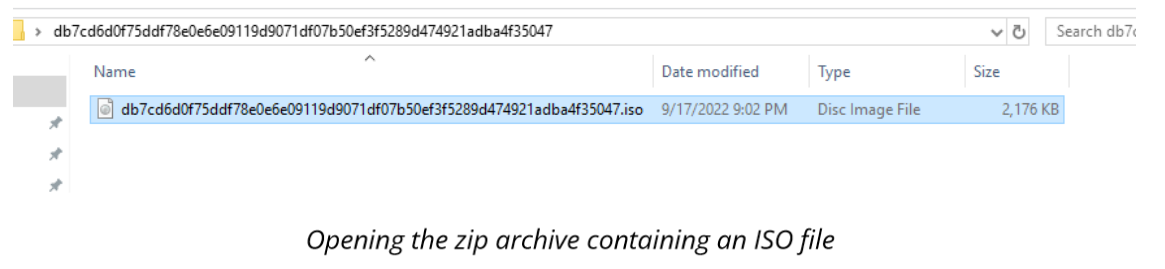

Similar IcedID infections typically begin with the victim opening a password-protected zip file that contains an ISO file.

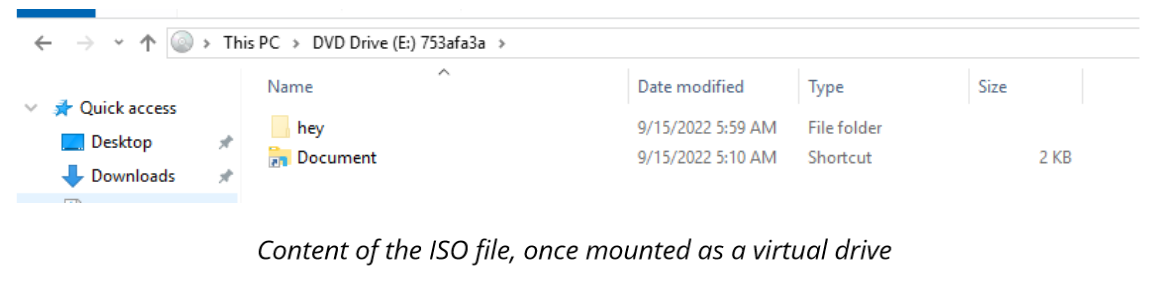

When double-clicked, ISO files automatically mount themselves as a read-only directory. This directory contains a hidden folder and an LNK (shortcut) file.
The hidden folder contains both an obfuscated batch file and a DLL payload.

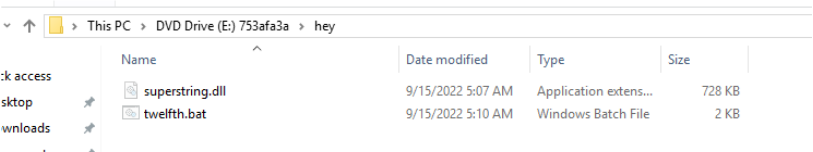

Content of the folder “hey” shows a DLL file
When the shortcut file is clicked, it executes the batch file in the hidden directory, through the system component cmd.exe.

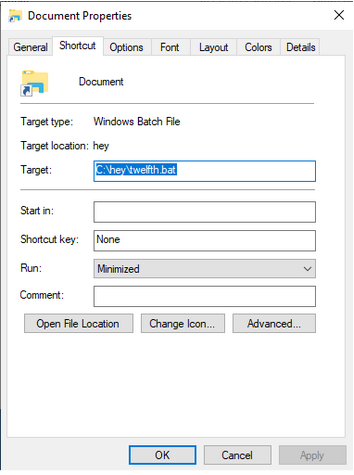

LNK file showing that twelfth.bat will be executed when this is clicked
The batch file calls xcopy.exe to copy and drop the DLL into the %TEMP% directory where it gets executed with rundll32.exe and a command line argument “#1” which indicates the function at ordinal 1 in the DLL.
Snippet of the obfuscated BAT file
Partially de-obfuscated BAT file, showing the copy of the DLL followed by the execution of rundll32.exe
The initial execution of the attack we’re reporting started through a batch file named “dealing.bat" which was found in the directory location "D:\ten\”, fitting with the known examples of typical IcedID infections.
Execution of the BAT file “dealing.bat”
This batch file spawned the rundll32.exe process to execute DLL homesteading.dll found in the user’s %TEMP% directory. We observed DNS requests and a successful HTTP connection to the address crhonofire[.]info.
Rundll32.exe process executing the DLL file named homesteading.dll
Next, the attacker carried out host discovery with net.exe to query for information on the domain, workstation, and members of the Domain Admins group.

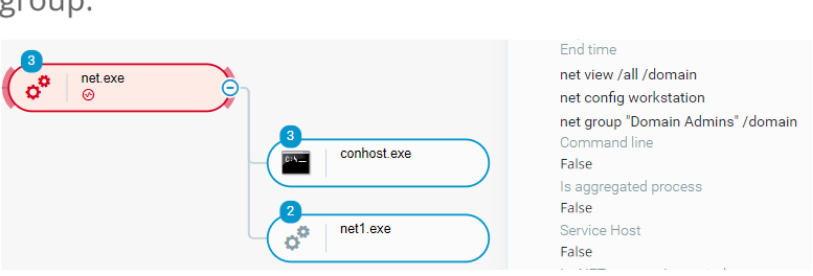

Cybereason process tree screenshot showing OS and Active Directory discovery activity
A few minutes after the initial start of the attack, homesteading.dll downloaded a file named xaeywn1.dll. Rundll32.exe then loaded this file into memory. The command line argument that references “license.dat” indicates that this is a component of IcedID malware. The “license.dat” file serves as a key to decrypt the IcedID payload.
Rundll32.exe loading xaeywn1.dll and referencing “license.dat” as an argument
We also observed, that simultaneously, there was an MSRPC request to MS-TSCH SchRpcRegisterTask, indicating that a scheduled task had been created by the rundll32.exe process, which was meant to execute xaeywn1.dll every hour and at each logon This establishes persistence on the machine.
MSRPC call indicating the creation of a scheduled task
Next we then observe rundll32.exe loading the floating module “init_dll_64.dll”. This is the decrypted and unpacked IcedID main bot. HTTP/S connections were made to blackleaded[.]tattoo, curioasshop[.]pics and cerupedi[.]com, all domains associated with IcedID malware.

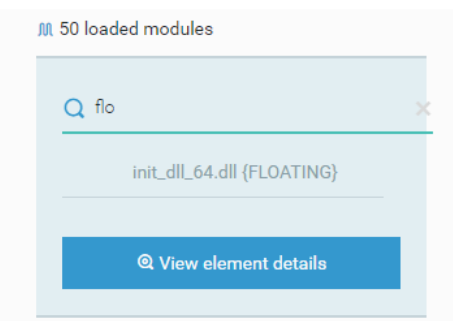

Module init_dll_64.dll being loaded into memory

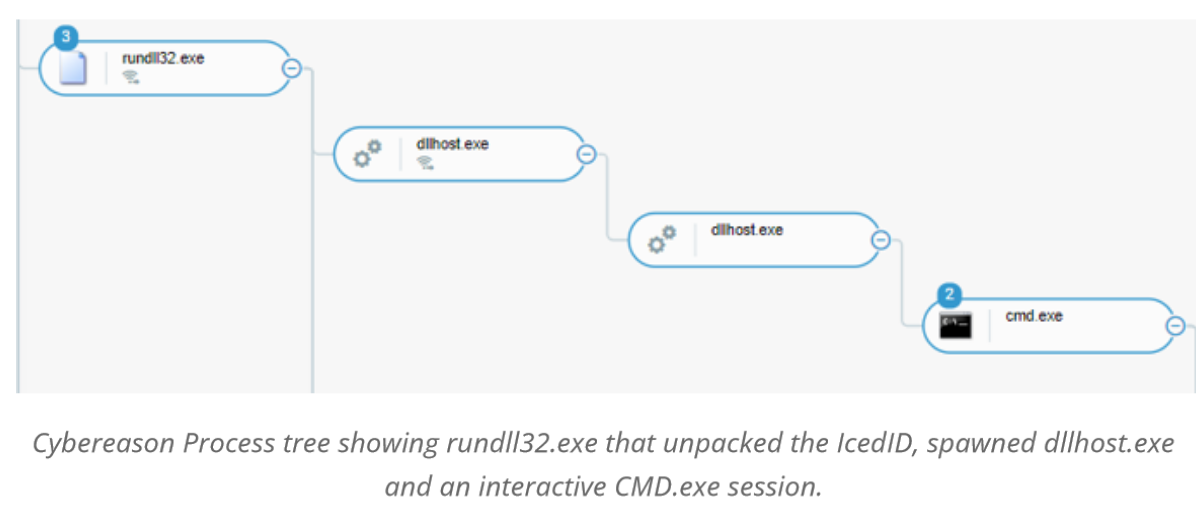

After that, we observe the creation of a child process named dllhost.exe, with a command line that references xaeywn1.dll, the decrypted IcedID payload. Dllhost.exe made external network connections and started an interactive session of cmd.exe.
During this interactive session, curl.exe was used to download the files power.bat and PowerDEF.bat from a remote IP address over HTTP.
The process curl was used to download power.bat and powerDEF.dat
Once downloaded, the attacker then executes the “powerDEF.bat”, which executes a Base64 encoded powershell that downloads additional files. This process was used to download 2.txt and 2.exe. Finally, tasklist.exe was used to list all of the running processes on the host.
Decoded PowerShell command

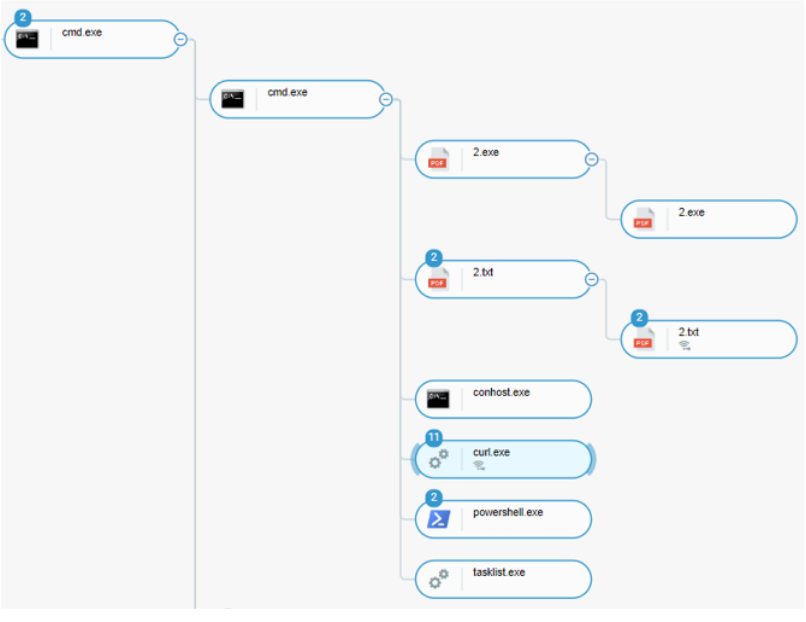

Cybereason Process tree showing the interactive CMD session
After the initial foothold was established with IcedID, regsvr32.exe loaded the file "cuaf.dll". Through open-source and intelligence (OSINT) research, we were able to determine this to be a Cobalt Strike beacon. The hash for this file was identified on several other machines as the attacker moved laterally throughout the network.
This process also made a connection to the IP resolving from the domain dimabup[.]com, a known Cobalt Strike command and control server.
Process tree showing regsvr32.exe loading a Cobalt Strike module, executing discovery action on the network and communicating with a C2 domain
Mentioned in more detail in the Credential Theft section, the Cobalt Strike beacon loaded Rubeus, a tool written in C# for Kerberos interaction and abuse, as well as additional reconnaissance activity with net.exe, ping.exe, and nltest.exe.
Additional information about this reconnaissance activity can be found in the Discovery section.
Cobalt Strike process loading Rubeus
The attacker followed what appeared to be a standard process when it came to lateral movement. The first pivot to another machine the Cybereason GSOC observed was roughly less than an hour after the initial infection. The attacker used ping.exe to determine if the host was online and then used wmic.exe with the “process call create” arguments to execute a remote file “db.dll” on the remote workstation.
Wmic.exe used for lateral movement
Once established on the remote host, the attacker executed the same Cobalt Strike beacon, this time named gv.dll.
The attacker continued to follow this process throughout the network, using ping.exe to see if the host is online, moving laterally through WMI, and executing Cobalt Strike payload for a better foothold.
Cobalt Strike payload used after lateral movement
Having compromised the credentials of a service account via kerberoasting, the attacker was able to move laterally to an internal Windows Server. The account has domain admin privileges and the attacker deployed a Cobalt Strike beacon.
Borrowing a technique from Conti, the attacker installed the AteraAgent RMM tool on several machines. Atera is a legitimate tool that is used for remote administration. Utilizing IT tools like this allows attackers to create an additional “backdoor” for themselves in the event their initial persistence mechanisms are discovered and remediated.
These tools are less likely to be detected by antivirus or EDR and are also more likely to be written off as false positives.
Installation of the AteraAgent
The executed command lines show that during the installation process, the attacker made a mistake with the misspelling of the outlook.it domain. It is a fairly common practice for attackers to use “burner” email addresses from both Proton and Outlook when using Atera as their backdoor agent.
Process tree showing executions of the Atera Agent
The first instance of credential theft took place just 15 minutes after the initial infection. The attacker used Kerberoasting (MITRE ATT&CK ID: T1558.003) to pull the hashes of service accounts on the domain. In this case, the C# Kerberos utility and interaction tool Rubeus was used.
In this attack, the hashes can be exfiltrated from the network, and depending on the strength of the password(s) of the service account(s), the hashes can be cracked with tools such as Hashcat or John the Ripper.
The process rundll32.exe is detected as it performed Kerberoasting attacks
After moving laterally to a file server in the environment and elevating privileges to SYSTEM via services, the attacker successfully executed a DCSync attack, allowing the attacker to compromise the domain. DCSync attacks (MITRE ATT&CK ID: T1003.006) allow an attacker to impersonate a domain controller and request password hashes from other domain controllers.
This is done by making RPC calls to a DC for AD Objects, namely DRSGetNCChanges. Only accounts that have certain replication permissions with Active Directory can be targeted and used in a DCSync, but it is an otherwise devastating credential stealing attack. A DCSync attack was also detected on one of the initially infected hosts.
Detection showing Active Directory abuse, identified by the DRSGetNCChanges MSRPC call
IcedID is known to attempt to hook into browsers such as Firefox or Chrome to attempt to steal credentials, cookies, and saved information. After the main bot was loaded, we observed hooking behavior in chrome.exe:
Process hooking into Chrome.exe
During its attack, the attacker used several discovery commands. Many of these commands are executed as part of the “SysInfo” module in the IcedID bot.
Net.exe was leveraged to discover OS and Active Directory information :
As mentioned previously, ping.exe was used to check if remote machines were online for lateral movement.
The attacker used nltest.exe to extract Active Directory information :
The PowerShell command Invoke-Share Finder was also used to find non-standard shares on the network.
Additional system commands were used to fetch more information on the host :
Finally, the attacker executed the command “wuauclt.exe /detectnow” in order to check for missing updates and patches.
Borrowing another technique from Conti, the attacker used netscan.exe, a legitimate IT tool created by SoftPerfect, to scan a large subset of the network his beachhead machine was on. The results of the scan were written to a local file “results.xml”
Netscan.exe used to locate additional hosts for lateral movement
The attacker used renamed copies of the popular rclone file syncing software to encrypt and sync several directories to the Mega file sharing service.
Executions of renamed rclone.exe
Usage of rclone has become the exfiltration vector of choice for many threat actors, including Lockbit.
If IcedID activity is observed in your environment, the following is recommended in order to help contain the attack:
Cybereason also provided recommendations which are not related to the product:
Cleanse compromised machines: Isolate and re-image all infected machines, to limit the risk of a second compromise or the attacker getting subsequent access to the network.
