CUCKOO SPEAR Part 2: Threat Actor Arsenal

In the previous installment of our Cuckoo Spear series, we introduced the Cuckoo Spear campaign and provided an overview of the APT10 threat actor’s tactics and objectives. If you missed Part 1, you can catch up here.

In this follow-up, we dive deeper into the technical aspects of the NOOPDOOR and NOOPLDR malwares that APT10 employed in the Cuckoo Spear campaign. Our analysis reveals how NOOPDOOR operates and the potential risks it poses to organizations. This breakdown will help cybersecurity professionals better understand and defend against the sophisticated strategies of this persistent adversary.

ARSENAL ANALYSIS

This section will mainly focus on the reverse engineering of the Cuckoo Spear tools : NOOPLDR and NOOPDOOR.

DLL Loader Analysis / NOOPLDR-DLL

Cybereason has discovered different variants of NOOPLDR-DLL differ in how they load the malicious code, illustrated below.Loaded as Service DLL-SideLoading

Capabilities

The capabilities of NOOPLDR-DLL are the following:

• Establishes persistence by registering as a Service
• Obfuscates code with Control Flow Flattening
• Encodes strings with XOR
• Creates process and injects shellcode obtained from registry
• Possibly evade user-mode hooks by dynamic custom syscalls

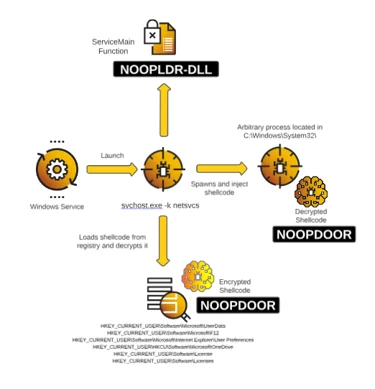

Service Persistence

Cybereason observed telemetry of several unsigned DLL files under C:\Windows\System32 that were loaded as part of the services started by the command svchost.exe -k netsvcs. This eventually injected a multitude of NOOPDOOR payloads into arbitrary processes. Further investigation revealed that the malicious DLL files are created by modifying a segment of legitimate DLLs. The modified section is given a randomly generated function name in the export table as shown here.

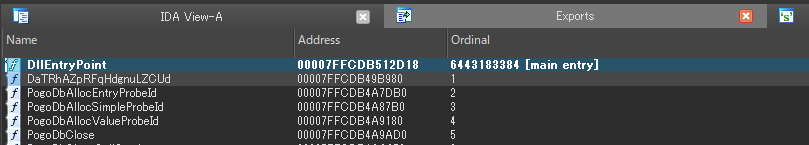

Export Table With Randomly Generated Function Names

This malicious export function is called as the service’s ServiceMain function, which is the entry point for a service that is implemented in a service DLL running within a SVCHOST instance.

ServiceMain Function

Control Flow Flattening

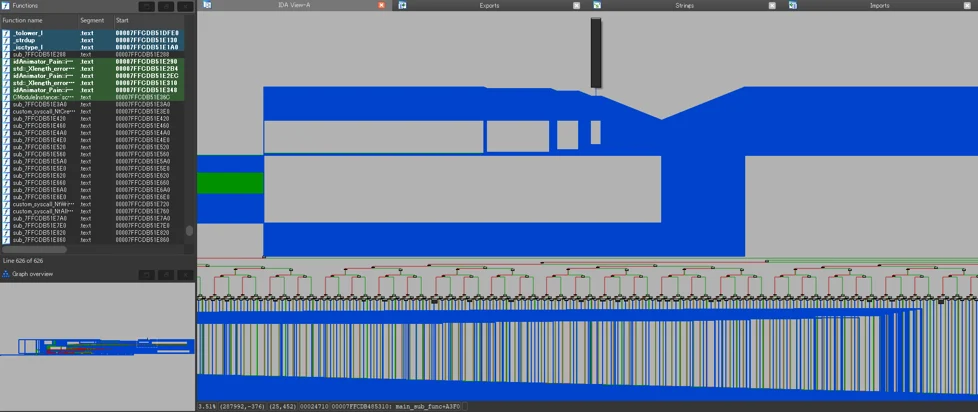

The entire DLL file, including the legitimate functions, has been heavily obfuscated with Control Flow Flattening to potentially slow down analysis efforts.

Control Flow Flattening Observed In NOOPLDR

XOR String

Strings used to register the service and query the registry are XOR encoded, and are decoded with bytes that are hardcoded within the .rdata section of the binary.

XOR  In NOOPLDR

Crafting a script that will decode all the strings reveals information related to the service settings, registry key path, and a command that starts a windows service and sets its security descriptor.

Software\Microsoft\SQMClient

MachineId

SOFTWARE\Microsoft\UserData

cmd /c "sc start %s && sc sdset %s D:(D;;DCLCWPDTSD;;;IU)(D;;DCLCWPDTSD;;;SU)(D;;DCLCWPDTSD;;;BA)(A;;CCLCSWLOCRRC;;;IU)(A;;CCLCSWLOCRRC;;;SU)(A;;CCLCSWRPWPDTLOCRRC;;;SY)(A;;CCDCLCSWRPWPDTLOCRSDRCWDWO;;;BA)S:(AU;FA;CCDCLCSWRPWPDTLOCRSDRCWDWO;;;WD)"

SOFTWARE\Microsoft\Windows NT\CurrentVersion\Svchost

netsvcs

%SystemRoot%\System32\svchost.exe -k netsvcs

SYSTEM\CurrentControlSet\Services\

Description

\Parameters

ServiceDll

ServiceMain

DaTRhAZpRFqHdgnuLZCUdP

*.exe

calc.exe

win32calc.exe

_config

-install

Decrypt NOOPDOOR Shellcode

NOOPLDR performs WinAPI calls to obtain encrypted shellcode from several different registry keys. A list of registry key paths observed by Cybereason are the following:

HKEY_CURRENT_USER\Software\Microsoft\Internet Explorer\User Preferences

HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\OneSettings

HKEY_CURRENT_USER\HKCU\Software\Microsoft\OneDrive

HKEY_CURRENT_USER\Software\Microsoft\UserData

HKEY_CURRENT_USER\Software\Microsoft\F12

HKEY_CURRENT_USER\Software\Licenses

HKEY_CURRENT_USER\Software\License

HKEY_CURRENT_USER\COM3

The decryption method utilizes AES-CBC mode with an initialization vector (IV) that contains the first 16 bytes of the MachineId. It uses standard WinAPIs from advapi32.dll to derive an AES key based on a SHA1 hash. The SHA1 hash is created from the following combined data:

1. The MachineId value from HKEY_LOCAL_MACHINE\\Software\\Microsoft\\SQMClient

2. A NULL byte

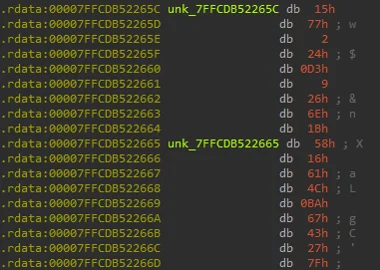

3. Hardcoded bytes within the .text and .rdata sections

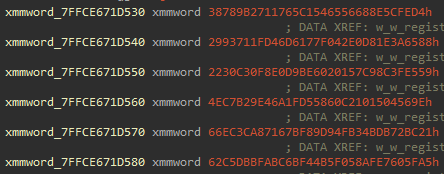

Hardcoded Bytes In NOOPLDR

1. The Registry key name that contains the shellcode

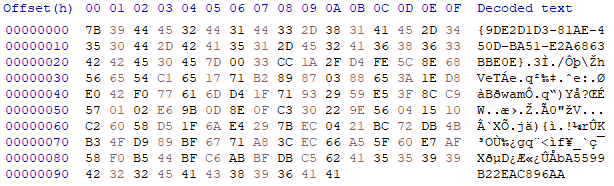

As an example, the data that will be hashed would look like below:

Data Prior To Getting Hashed

Once hashed, the hash object is then passed to the CryptDeriveKey function to craft the key used for decryption.

Code Injection with Syscalls

Executables under C:\Windows\System32 are started as dummy processes to inject the decrypted NOOPDOOR code with a common WinAPI pattern of

• CreateProcess

• VirtualAlloc

• WriteProcessMemory

• CreateRemoteThread

However, Native APIs are implemented instead along with custom syscalls where the SSN (System Service Number) is loaded dynamically right before each call. Although most SSNs are consistent across many Windows versions, some are not.

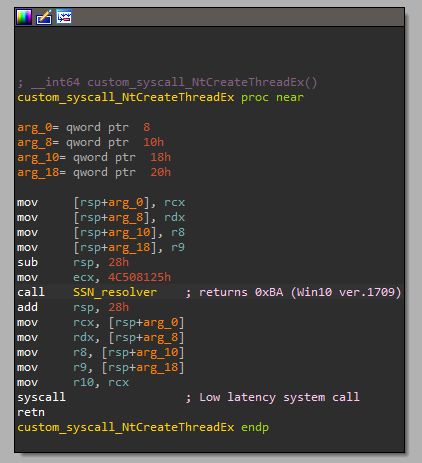

The malicious code resolves  the correct value for each syscall. For example, NtCreateThreadEx would be 0xBA on Windows 10 version 1709.

Custom Syscall In NOOPLDR

Windows 64-bit Syscall Table

Since the Native APIs are being called directly from the process’s memory space, any user mode hooks on NTDLL or kernel32 will be ineffective in detecting this injection.

An interesting difference between the two DLLs is the version that used DLL Side-Loading performed local code injection as opposed to the DLL that used CreateProcess > NtWriteVirtualMemory.

It instead dynamically allocates the decrypted shellcode within its process memory, uses NtProtectVirtualMemory syscall to change protections, then executes the newly allocated NOOPDOOR code.

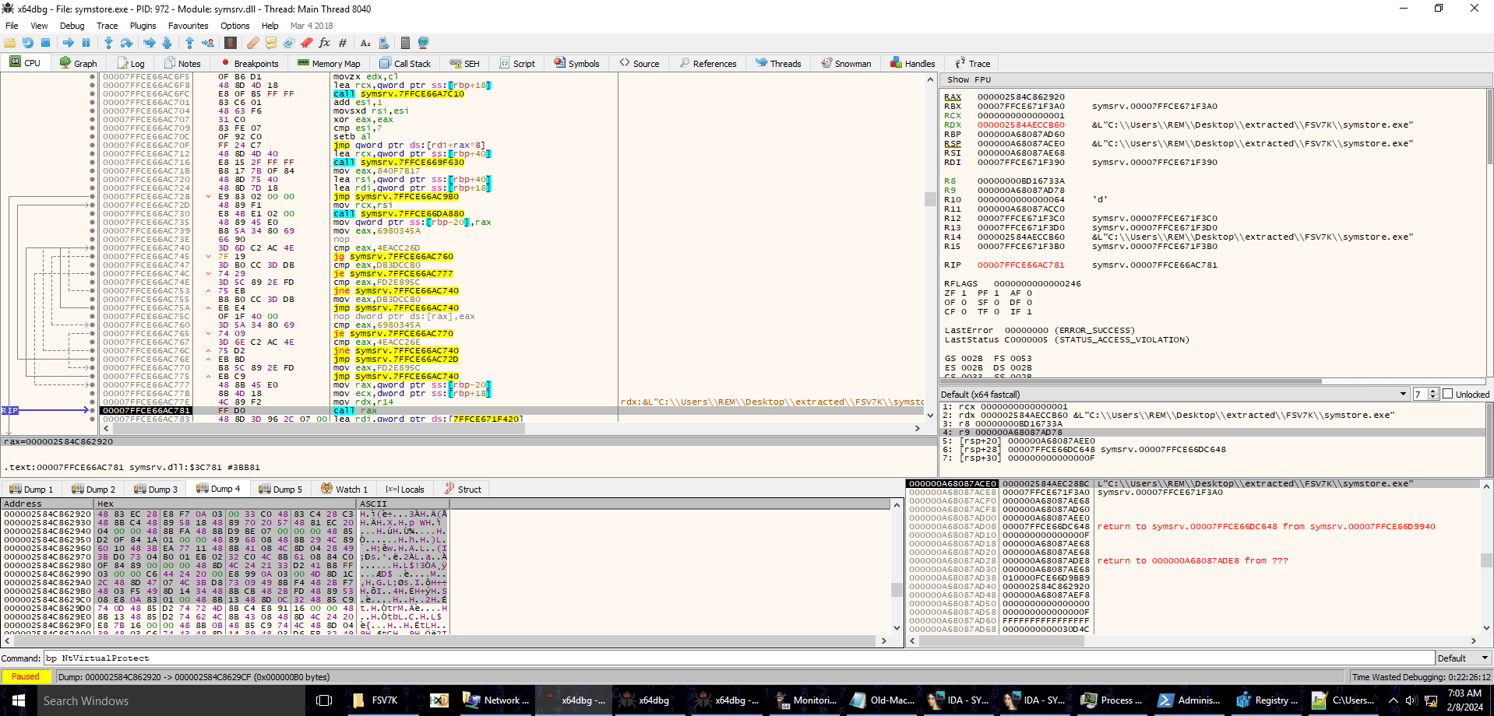

Decrypted NOOPDOOR In Debugger

C# Loader Analysis / NOOPLDR-C#

This C# code is stored in an XML file generally stored in the C:\Windows\System32 folder. In some specific cases, that XML file was stored in other folders.

The code is highly obfuscated, but Cybereason de-obfuscated it in order to identify how it worked.

Mainly, the code is loaded using the Microsoft Windows tool msbuild.exe, which compiles and runs code in one command. The command line msbuild.exe [NOOPLDR XML FILE NAME].xml is generally built-in to the victim system through persistence mechanisms such as scheduled tasks, services or WMI consumer events, as documented in the TTPs section.

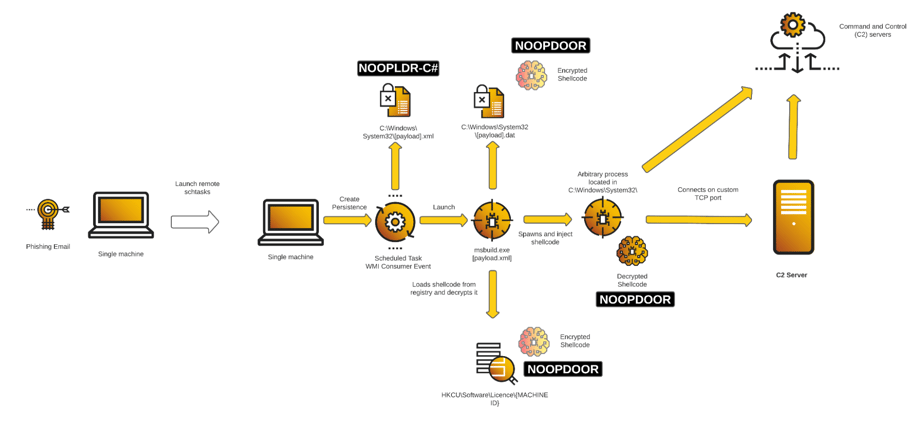

NOOPLDR-C# Execution Flow

Capabilities

The capabilities of NOOPLDR-C# are the following:

• Code obfuscation
• Time stomping, basing code off kernel32.dll MTime
• Loading shellcode / loadable code either from a specific .dat file or from registry
• Contains unique configurations for each affected victim device



Each NOOPLDR-C# sample Cybereason analyzed was different depending on the machine. Some loaders included different organization of the functions, and loaded the shellcode from a different registry hive (some loaded from HKCU, and other loaded from HKLM).

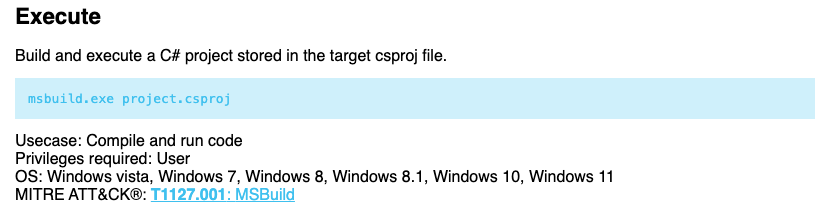

MSBuild Project File Schema Reference

Each item is using the Project File format by Microsoft, in order to be  interpreted by the LOLBin msbuild.exe. That binary takes a .csproj file (here renamed XML) which is then compiled and ran:

Source : https://lolbas-project.github.io/lolbas/Binaries/Msbuild/

That XML file, our starting point, begins with the following code:

<Project ToolsVersion="4.0" xmlns="http://schemas.microsoft.com/developer/msbuild/2003">

<Target Name="MFYMF[...]BppIs">

     <jIN[...]LLE />

</Target>

<UsingTask TaskName="jINp0k6v[...]LLLE" TaskFactory="CodeTaskFactory"

     AssemblyFile="$(MSBuildToolsPath)\Microsoft.Build.Tasks.dx3gN2[...]QQApv4.0.dll">

     <Task>

[C# CODE]

     </Task>

</UsingTask>

</Project>

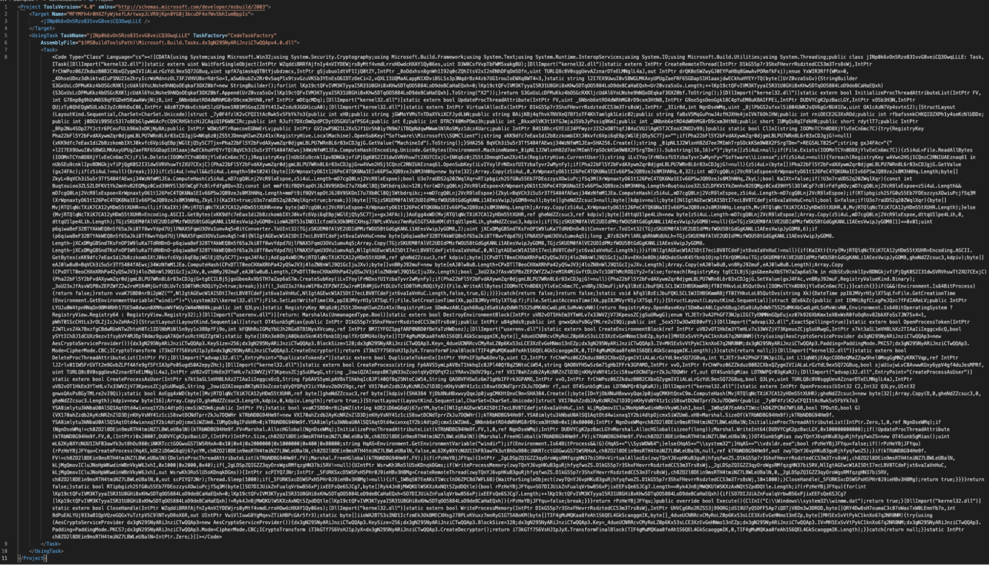

The C# Code mentioned above is extremely obfuscated to complicate analysis.

C# Code Obfuscation

To start with this analysis, one needs to deobfuscate the loader. The original file looks like this at first:

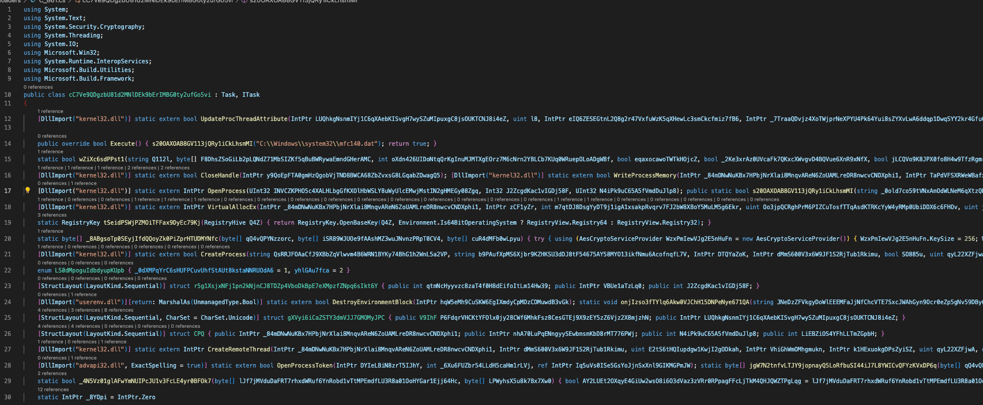

Obfuscated Code

Using a simple IDE, one can already use C# code heuristic to indent code properly:

Extract From The Code Once Indented By VSCode

The next phase is the renaming of each variable and parameter. Since WinAPI functions are being called from the C# code, it’s possible to map each randomly named variable with a properly named one:

static extern IntPtr OpenProcess(UInt32 INVCZKPHO5c4XALHLbgGfKXOlHbWSLY8uWyUlcEMwjMstIN2gHMEGy08Zgq, Int32 J2ZcgdKac1vIGDj58F, UInt32 N4iPk9uC65A5fVmdDuJlp8);

[DllImport("...")]

static extern IntPtr OpenProcess(UInt32 dwDesiredAccess, Int32 bInheritHandle, UInt32 dwProcessId);

The following phase is a bit manual as the goal is to infer the original variable name by trying to understand how the code works.

In the end, this allows for an easier code to understand:

Extract From The Un-Obfuscated Code

The first function that is called is Execute():

First Function Called And Beginning Of The C# Code Flow

Obtaining the encrypted Shellcode

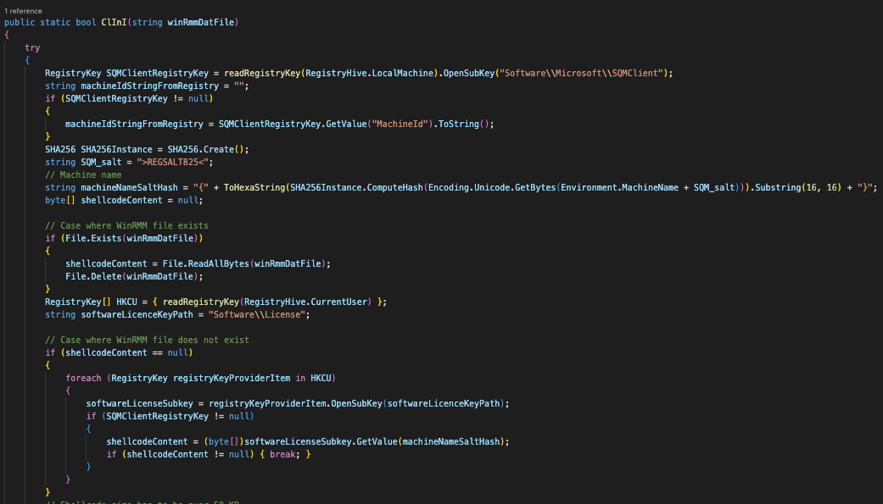

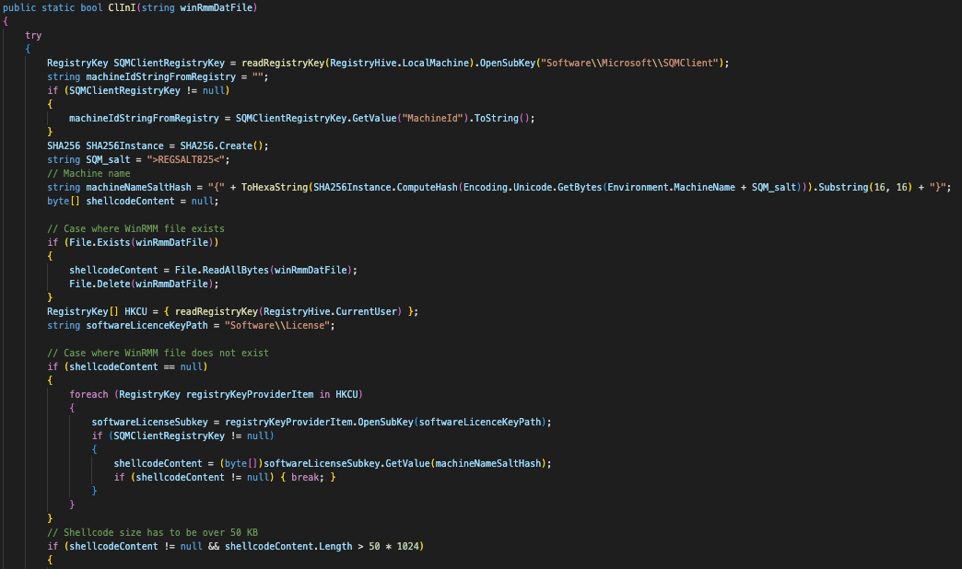

The ClInI function’s goal is to obtain the shellcode from that DAT file passed as a parameter or from the Windows registry if the shellcode is already stored there.

First Part Of The Function

That function will first create a hash based on the machine name and a salt. Cybereason noticed this hash is not always present in different iterations of NOOPLDR-C#.

Also, the value MachineId is obtained from the key  HKLM\Software\Microsoft\SQMClient.

Both the machine name and SALT are concatenated and a SHA256 is calculated from them.

This allows to calculate the name of the key  (just the first 16 bytes will be used) that the program will try to obtain from the registry: HKLM\Software\License\{SHA256(MachineName+SALT)}

Then, the program attempts to load the .dat file passed as a function parameter:

• If the file exists, it will load the shellcode from it
• If it does not, it will load it from registry



Cybereason estimated that this measure was meant to initially inject the shellcode into the registry. This was confirmed after further reading of the code:

• If the file exists, the code ultimately will write the encrypted shellcode to registry and will delete the DAT file



This enables the Threat Actor to function without the shellcode stored on the disk, apart from the registry which is a more complicated place to look for. Storing shellcode in the Windows registry provides attackers with a stealthy, persistent, and potentially privileged way to execute malicious code on a system, making it an attractive option.

At this point, the encrypted shellcode content is obtained in memory and ready to be used.

Integrity Check and Shellcode Decryption

The code will first compare the SHA256 hash of the shellcode (minus the first 32 bytes) with a value stored at the very beginning of the file/registry key:

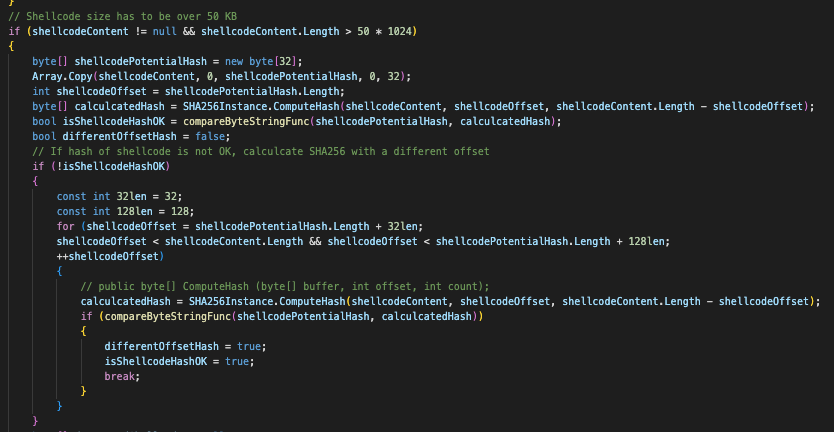

Integrity Check

The code will continue only if, at some point in the file/registry, the SHA256 checksum, which is commonly called an integrity check, matches the computed SHA256 hash of the shellcode itself. The code will then calculate the key to decrypt the shellcode.

The key is a SHA384 hash of the MachineID value from the registry and the machine name salt calculated in the previous step. It then decrypts the shellcode content with a classic AES routine, using the first 32 bytes of the SHA384 as key and the last 16 bytes as an initialization vector (IV).

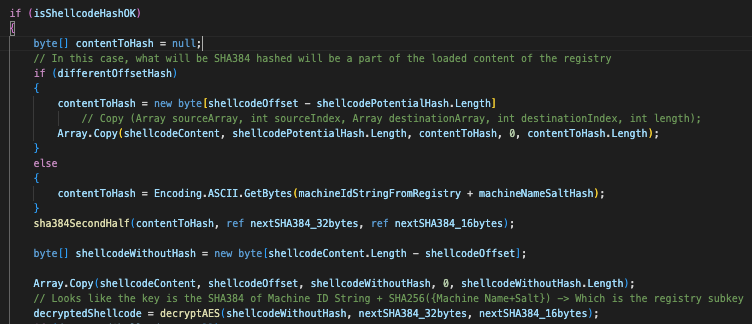

Decryption Routine

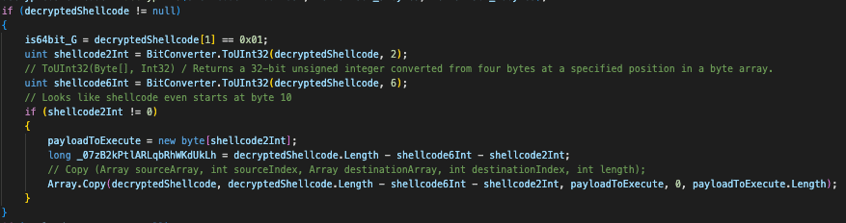

Finally, it will take the first 10 bytes of the decrypted content and store it in 3 variables :

• Boolean if the shellcode is 64 bits
• Unsigned integer of the shellcode size
• Unsigned integer of the shellcode offset in case it is not directly at the beginning of the data

Store In Variables

Data Re-Encryption & Registry Writing

The logic will execute if the shellcode was loaded through a different offset than 0:

• The code will recalculate a SHA384 key and use an AES encryption function
• It will then write that content to registry
• If for some reason it can’t write to registry, it will write to the DAT file



Once that is finished, the code proceeds to inject that decoded shellcode into another process’ memory.

Payload Injection

The next part of the code injects the decrypted shellcode into the memory of a newly spawned process. The code corresponding to this part is the following:

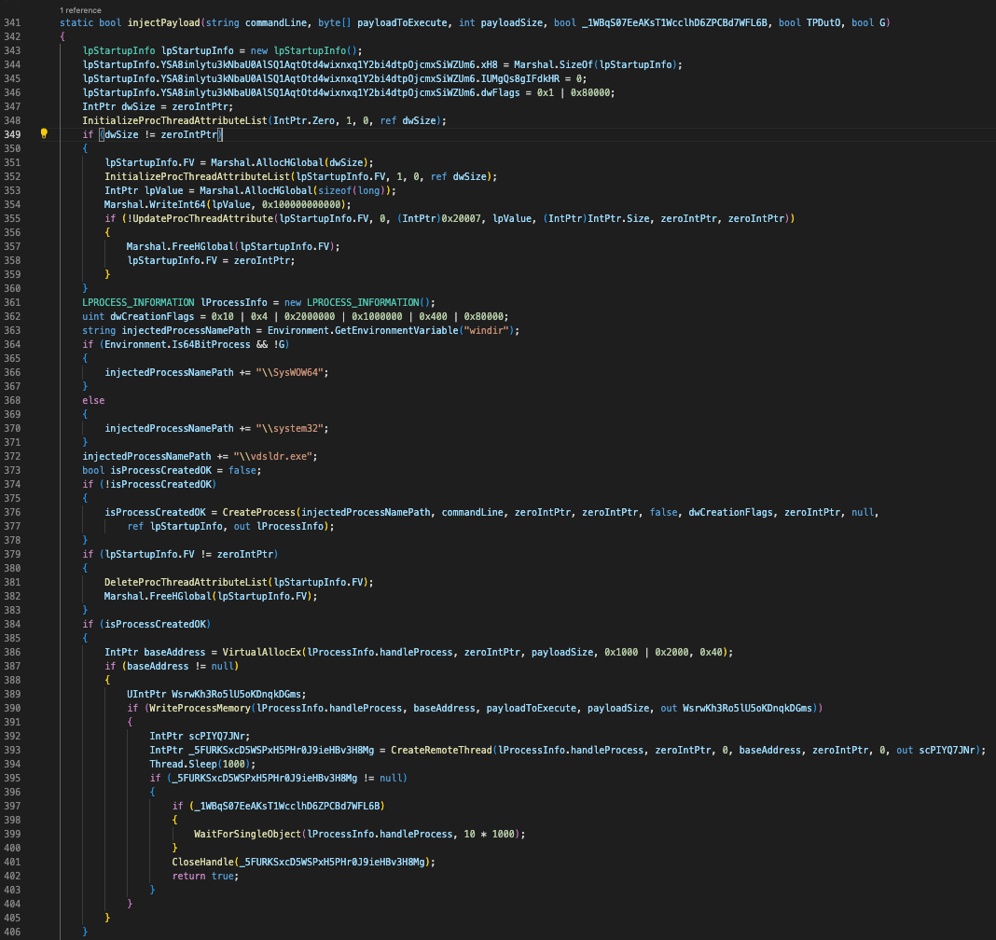

Remote Injection Function

The injection process following:

• Startup Information Initialization
• Process Attribute List Initialization
• Process Creation through the CreateProcess WinAPI call
• Memory Allocation and Manipulation in the New Process through VirtualAllocEx and WriteProcessMemory
• Remote Thread Creation through the CreateRemoteThread WinAPI call

Extracting the configuration

In order to extract the configuration for each iteration of NOOPLDR, one has to obtain the following elements

• Process name that the loadable code will be loaded into
• DAT file that is going to be loaded when first infecting a machine
• Path in registry where the shellcode is stored (HKLM\SOFTWARE\License)



Cybereason wrote a short python script to decrypt the shellcode using parameters such as the registry key name ({XXXX-XXXX-XXXX}) and the MachineId value.

Injected Shellcode /  NOOPDOOR

This next section will describe the analysis of the shellcode injected from the above methods. Cybereason attributes this malware to NOOPDOOR as it has been so recently unearthed in JSAC 2024. Cybereason has discovered the existence of several variants of NOOPDOOR that differ in C2 urls and functionality, but they can mostly be categorized as one of the following.

• C2 Client
• C2 Server

Cybereason also observed single shellcode binaries that contain both of these two capabilities. But in most cases, the client and server shellcode were separated.

C2 Client NOOPDOOR Analysis

Capabilities

The capabilities of the Client code of NOOPDOOR are the following:

• API hashing / Overwrite with garbage bytes
• Anti-Debugging
• DGA based onURLconfigurations
• Custom network protocol using TCP
• Exfiltrating data to C2 server

WinAPI Resolution

Each code shared a similar Windows API hashing function that performs a rotate right instruction against the function names and an XOR instruction against hardcoded bytes.

Dynamic WinAPI Resolution Logic

The hardcoded bytes differ from each sample, but it will nevertheless create a large structure of around 250 API functions.

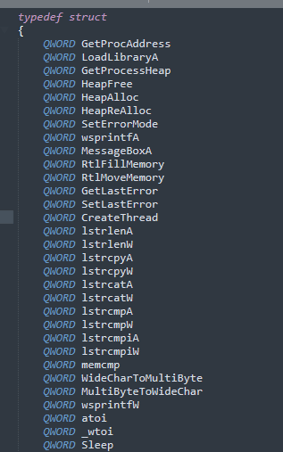

Loaded WinAPI Struct Example

This struct is then used to call the appropriate APIs within the code. The Cybereason IR team has created a script to resolve this API hashing function to speed up analysis.

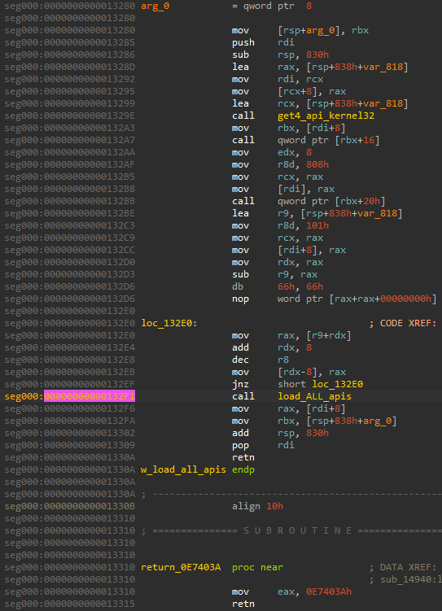

As a means of Anti-Detection, the functions related to resolving the APIs will be overwritten with garbage bytes such as 0x00, 0x20, 0x90. Any signatures scanned in memory that explicitly looks for this part of the code will not be able to detect it.

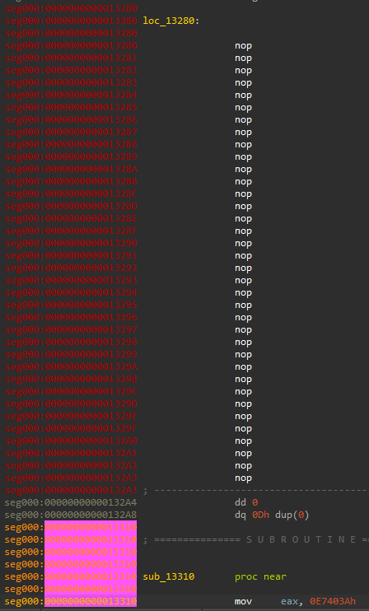

                    Dumped From memory                                  Before Execution

Code Difference In Memory

Anti-Debugging Capabilities

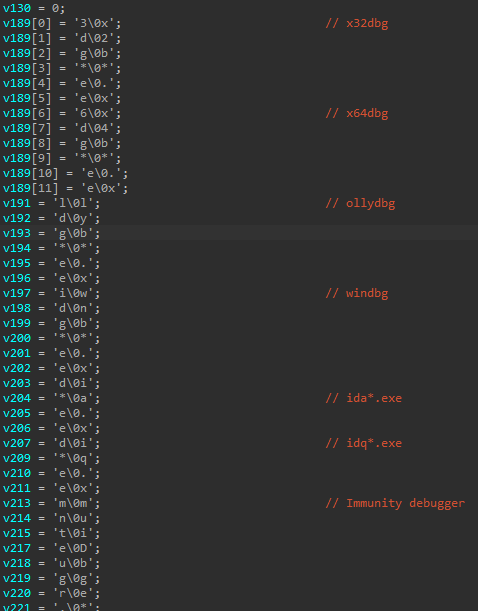

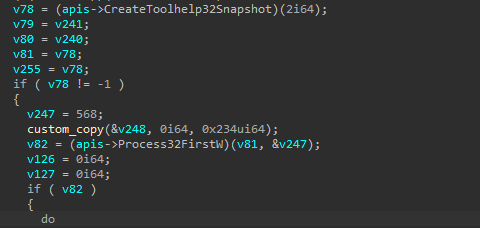

A widespread number of process names used in malware analysis are stored as stack strings. These processes are obtained via the CreateToolhelp32Snapshot API and are verified before the code’s main routine will run.

・x32dbg

・x64dbg

・ollydbg

・windbg

・ida

・idaq

・ImmunityDebugger

・loaddll

・ProcessHacker

・StudioPE

・PE Explorer

・Autoruns

・Process Explorer

・Procmon

・TcpView

・010Editor

・WinHex

・Wireshark

・zenmap

・ProcessHacker

・vmmap

・load_sc

・HttpAnalyzerStd

・Fiddler

DGA

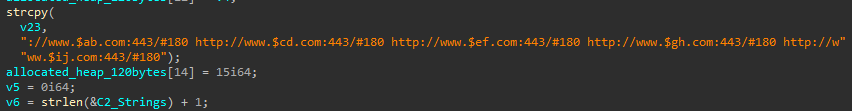

C2 Domain names are generated based on a URL string where the integer after the “#” acts as the number of days before the domain changes to its next iteration. Cybereason has observed code that generates the domains for multiple days such as 60, 90, 180, 364, 365 days. Note that the C2 URL string contains “http”, but this is just used to create hashes for the DGA, and actual communication is done over a custom TCP protocol.

C2 URLs Before DGA Resolution

The algorithm to generate the domain is as follows.

1. Perform a check to see if the current date/time is between

   Monday 10 am to 11 am (LocalTime)

2. Obtain SystemTime structure, converting it to a FileTime, then to EpochTime based on the year/month/day

3. If the URL has an integer after “#”, use it to perform arithmetic against the time

4. If the URL has “[]”, insert the hostname

5. Create a SHA256 from the modified FileTime

6. Create a SHA512 from the un-resolved C2 URL string in (4)

7. Create a SHA512 from created SHA256 and un-resolved C2 URL string in (4)

8. Obtain Base64 from concatenated SHA512 hash from (6) and (7), then obtain the first 17 bytes

9. Remove special chars, lowercase chars, and numbers from base64 string

10. Replace the “$a” part of un-resolved C2 URL with cleaned base64 string

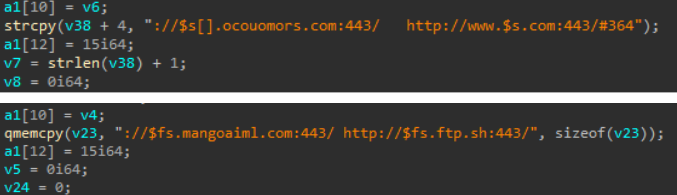

The C2 URL could also be a subdomain as illustrated below. In this case, Cybereason observed a slightly different algorithm. In this case, the check for Monday is not present and if it does not have the number of days after “#”, the domain will change everyday based on the system time.

C2 urls before resolution

The Cybereason team has created a script to resolve the DGA URLs and generated a list of domains from 2023 to 2025. From an IR perspective, subdomains like ocouomors[.]com are easier to block than www.*.com. To prevent the list from being too long, Cybereason only included the latter. The script can be used to block any other possible NOOPDOOR domains that could be generated within your organization..

Exfiltration to C2

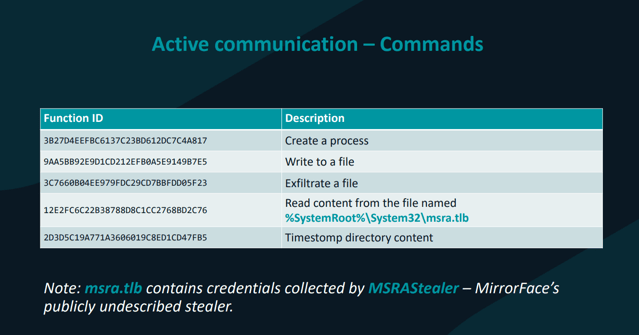

It has the functionality to exfiltrate data to the generated domain as well as additional C2 capabilities. ESET Security’s presentation at JSAC 2024 documents this functionality well.

Source: https://jsac.jpcert.or.jp/archive/2024/pdf/JSAC2024_2_8_Breitenbacher_en.pdf

Internal C2 Server NOOPDOOR Analysis

A variant of the loaded payload contained code for a possible internal C2 server. Cybereason suspects this server was used by the Threat Actor as a means of aggregating information and pivoting within the network.

Capabilities

The capabilities of the C2 Server of NOOPDOOR are the following:

• API hashing
• Modifying Firewall Rules
• Custom protocol using TCP
• C2 framework functionality such as upload/download, read/write files, create processes, etc.

Adding Firewall Rule

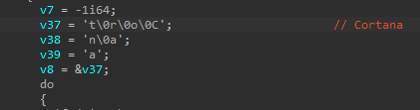

It adds a new firewall rule under the rule name “Cortana” by utilizing the firewall COM object, or the netsh command.

Firewall Name

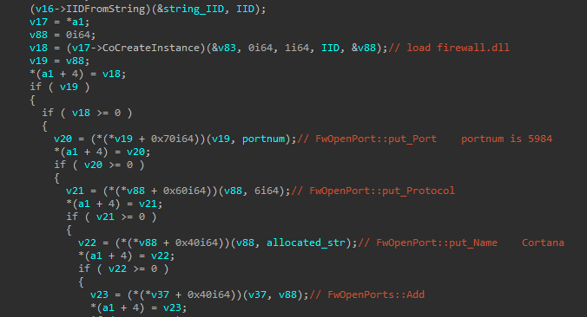

The Windows Firewall API is loaded by CoCreateInstance where the COM Firewall CLSID {304CE942-6E39-40D8-943A-B913C40C9CD4} is used as the Interface ID, and the INetFwMgr Interface CLSID {F7898AF5-CAC4-4632-A2EC-DA06E5111AF2} as the rclsid parameter.

Loading Firewall API

If the COM object method of loading the Firewall API fails, it executes the below netsh command instead.

cmd /c netsh firewall delete port opening TCP 5984 & netsh firewall add port opening TCP 5984 TCP

Server Code

Uses Windows Socket APIs to listen on port for incoming connections.

Listening Port

Cybereason have observed samples that listen on different ports:

• 5984
• 47000
• 8532

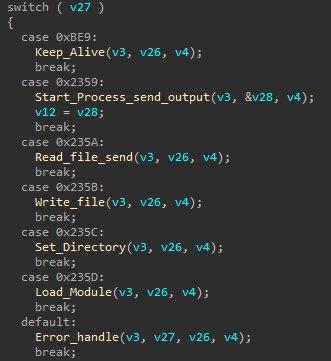

Based on the received commands, it will perform one of the following functions.

Server Functionality

Conclusion

Due to the widespread identification of Cuckoo Spear in Japan organizations, Cybereason decided to publish this Threat Analysis Report to better identify their activity and allow threat hunters to potentially identify them in their networks.

Detection

Cybereason provided descriptions of queries to identify Cuckoo Spear presence in the network and has shared Indicators of Compromise (IOCs) to better detect them and potentially block Cuckoo Spear activity.

Incident Response

Due to the potential complexity of the containment, eradication and recovery process, it is highly recommended to hire a dedicated Incident Response team upon discovery of this Threat Actor being on the network.

Remediation

In many APT related cases, the Threat Actor has already gained network access for several months or years before any investigation has started. Eradication of this Threat Actor requires in-depth preparation and effective security measures so the attacker cannot return. Although remediation actions will differ for each organization, Cybereason Security Services suggest, in general, to conduct a organization scale remediation day where the following actions are implemented:

• Prepare a clean uncompromised network

• Disabled all internet access to and from the internet

• Block all NOOPDOOR related C2 domains and IPs

• Reset all user passwords

• Rebuild infected machines

• Connect rebuilt machines to the clean network

Hunting Queries

To detect if a NOOPLDR/NOOPDOOR has been exploited in your environment, run the following hunting query in your EDR or monitoring platform.

• Hunting For Suspicious MSBUILD Execution Via Persistence: This rule will help in detecting suspicious activities where msbuild.exe is used with a .xml file and involves portable executable code, especially when the parent process is one of the common Windows processes like scrcons.exe, services.exe, or svchost.exe
• Hunting For Suspicious Service Containing MSBUILD And .xml In The Command Line : This rule will help in detecting suspicious activities where msbuild.exe is spawned through Service creation, with .xml embedded in the command line

• Hunting For Suspicious WMI Consumer Event : Same as above, but modify the persistence mechanism from Service to WMI Consumer event

• Hunting For Suspicious DGA-Like Behavior : This rule combines file attributes, process monitoring, and network behavior analysis. It targets unsigned files of non-trivial size, modules loaded by svchost.exe, and processes with unusual DNS query ratios (more unresolved DNS queries than resolved ones, which is characteristic of Domain Generation Algorithm or DGA use).
  • Consider whether each filter adds to the detection's precision or might create noise, and adjust based on the specific environment and threat landscape. The goal is a balanced rule that minimizes false positives while effectively identifying potential threats.



Indicators of Compromise (IOCs)

* NOOPDOOR shellcode hashes have been omitted from this list,
as the hashes differ for every NOOPDOOR sample Cybereason has observed.

MITRE ATT&CK MAPPING

About The Researchers

Jin Ito, Incident Response Engineer,  Cybereason IR Team

Jin Ito is an Incident Response Engineer with the Cybereason Incident Response team. Formerly an Incident Response Engineer at Fujitsu, he holds several cybersecurity certificates such as GREM, GCFA, and OSCP. Aside from his digital forensic responsibilities, he loves creating and reverse engineering malware.

Loïc Castel, Incident Response Investigator, Cybereason IR Team

Loïc Castel is an Investigator with the Cybereason IR team. Loïc analyses and researches critical incidents and cybercriminals, in order to better detect compromises. In his career, Loïc worked as a security auditor in well-known organizations such as ANSSI (French National Agency for the Security of Information Systems) and as Lead Digital Forensics & Incident Response at Atos. Loïc loves digital forensics and incident response, but is also interested in offensive aspects such as vulnerability research.

Kotaro Ogino, CTI Analyst,  Cybereason Security Operations Team

Kotaro is a CTI Analyst with the Cybereason Security Operations team. He is involved in threat hunting, threat intelligence enhancements and Extended Detection and Response (XDR). Kotaro has a bachelor of science degree in information and computer science.
